Class X Inch Pin Gage Sets
* Please allow 18-20 week to ship *

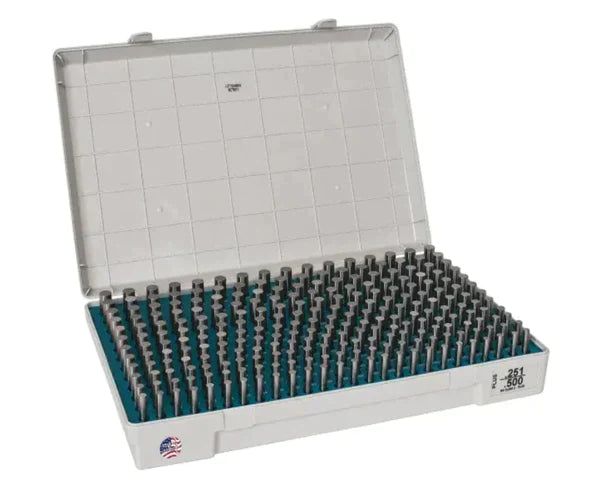

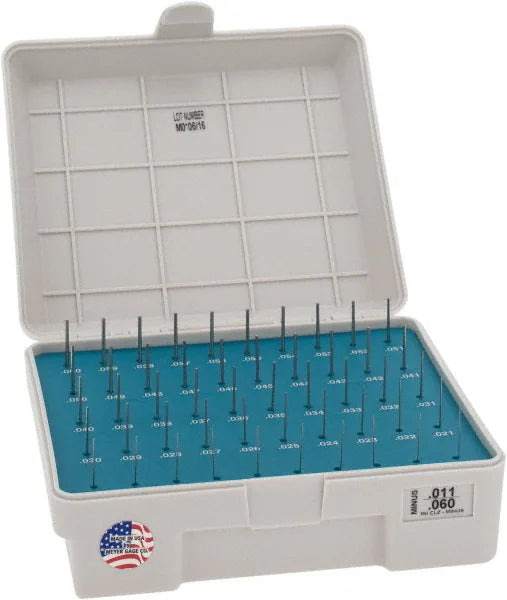

CLASS X PIN GAGES SETS & LIBRARY SERIES
100% Inspected for ACCURACY!
Our Class X Pin Sets & Libraries offer the same “features” as our Class Z pin gages but with .00004” tolerance limit and .00002” roundness limit ( note tolerance limits increase above .8250″ per gage makers tolerance chart ). These pin gage sets are perfect for critical inspection needs or when you want to maximize your GO/NOGO tolerance limits. They’re also a great way to calibrate measuring equipment, micrometers and calipers.
Scroll down for more info on the sets
FEATURES
- All gages and sets are traceable to N.I.S.T.
- Boxes and pin gages both marked
- Size and serial number laser etched on each piece (M-OX not etched)
- Material: 52100 Bearing Steel
- No sharp edges
- All members 2” long
USES
- Checking locations
- Measuring hole sizes and depth
- GO & NO/GO gaging
- Setting micrometers
- Checking distances between holes
FINISH
- Centerless lapped
- Each gage is inspected and has a 2 microfinish or better
- Heat treated to a hardness of 60-62 Rockwell C
- All English gages with starting tolerance of .00004” limit ( note tolerance limits increase above .8250″ per gage makers tolerance chart )
