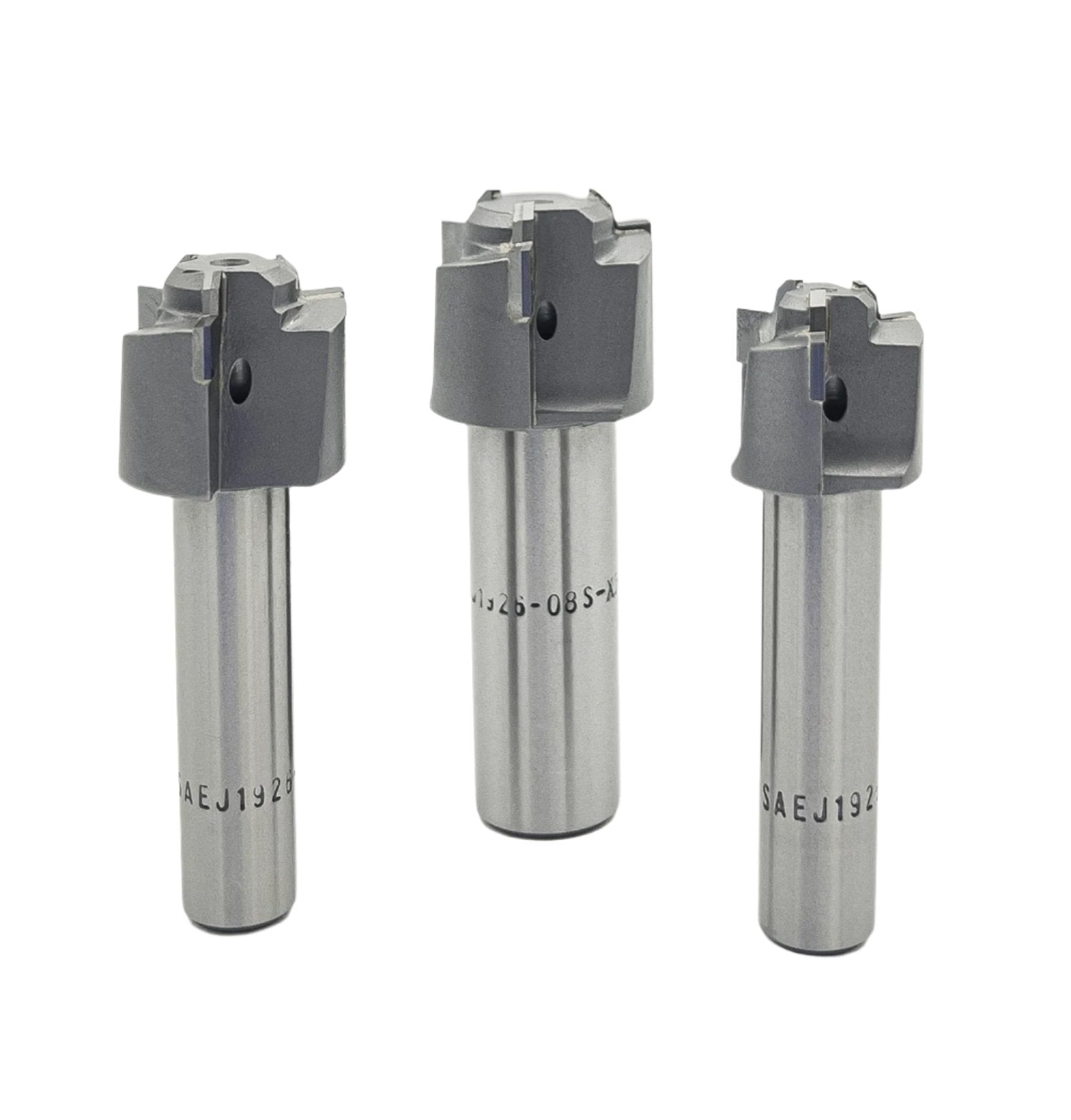

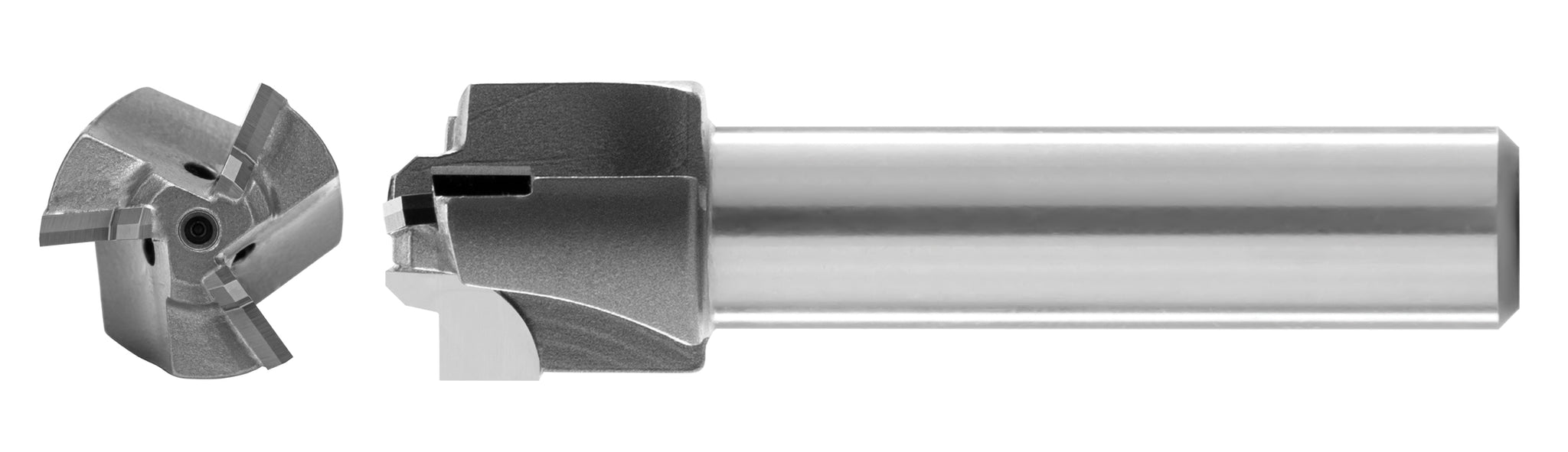

SAEJ1926-X Port Cutter - Without Pilot (also MS16142)
Please allow up to 1-2 weeks to ship outside of USA
SAEJ1926-X
- Ideal for non-standard minor diameter lengths
- Coolant hole to each flute
- Polished flute face for optimum performance
- ALTiN+ coating for improved surface finish
- Meets the requirements of MS16142

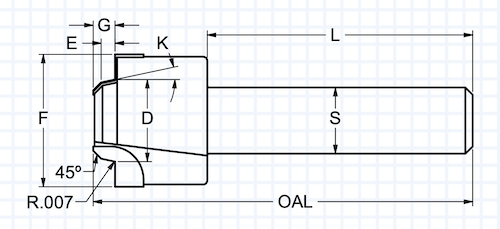

SPECIFICATIONS
|
K |
D |
E |
G |
F |
S |
L |
OAL |
FLUTES |
TUBE |
THREAD |
SAE# |
ORDER # |
EDP # |
||
|
UNCOATED |
ALTiN+ |
UNCOATED |
ALTiN+ |
||||||||||||
|
12o |
0.3605 |
0.082 |
0.132 |
0.682 |
0.500 |
2.00 |
2.75 |
3 |
0.125 |
0.3125-24 UNF-2B |
SAE#2 |
SAEJ1926-02X |
SAEJ1926-02XA |
406800 |
406801 |
|
12o |
0.4235 |
0.082 |
0.132 |
0.760 |
0.500 |
2.00 |
2.75 |
3 |
0.188 |
0.3750-24 UNF-2B |
SAE#3 |
SAEJ1926-03X |
SAEJ1926-03XA |
406802 |
406803 |
|
12o |
0.4895 |
0.101 |
0.151 |
0.838 |
0.500 |
2.00 |
2.75 |
3 |
0.250 |
0.4375-20 UNF-2B |
SAE#4 |
SAEJ1926-04X |
SAEJ1926-04XA |
406804 |
406805 |
|
12o |
0.5525 |
0.101 |
0.151 |
0.916 |
0.500 |
2.00 |
2.75 |
3 |
0.312 |
0.5000-20 UNF-2B |
SAE#5 |
SAEJ1926-05X |
SAEJ1926-05XA |
406806 |
406807 |
|
12o |
0.6185 |
0.105 |
0.165 |
0.990 |
0.500 |
2.00 |
2.88 |
3 |
0.375 |
0.5625-18 UNF-2B |
SAE#6 |
SAEJ1926-06X |
SAEJ1926-06XA |
406808 |
406809 |
|
15o |
0.8135 |
0.105 |
0.178 |
1.198 |
0.750 |
2.13 |
3.13 |
3 |
0.500 |
0.7500-16 UNF-2B |
SAE#8 |
SAEJ1926-08X |
SAEJ1926-08XA |
406810 |
406811 |
|
15o |
0.9445 |
0.108 |
0.188 |
1.354 |
0.750 |
2.13 |
3.25 |
3 |
0.625 |
0.8750-14 UNF-2B |
SAE#10 |
SAEJ1926-10X |
SAEJ1926-10XA |
406812 |
406813 |
|
15o |
1.1505 |
0.108 |
0.218 |
1.635 |
0.750 |
2.13 |
3.25 |
3 |
0.750 |
1.0625-12 UN-2B |
SAE#12 |
SAEJ1926-12X |
SAEJ1926-12XA |
406814 |
406815 |
|
15o |
1.2755 |
0.138 |
0.218 |
1.775 |
1.000 |
2.25 |
3.50 |
3 |
0.875 |
1.1875-12 UN-2B |
SAE#14 |
SAEJ1926-14X |
SAEJ1926-14XA |
406816 |
406817 |
|
15o |
1.4005 |
0.138 |
0.218 |
1.935 |
1.000 |
2.25 |
3.50 |
3 |
1.000 |
1.3125-12 UN-2B |
SAE#16 |
SAEJ1926-16X |
SAEJ1926-16XA |
406818 |
406819 |
|
15o |
1.7155 |
0.138 |
0.228 |
2.290 |
1.000 |
2.25 |
3.63 |
3 |
1.250 |
1.6250-12 UN-2B |
SAE#20 |
SAEJ1926-20X |
SAEJ1926-20XA |
406820 |
406821 |
|
15o |
1.9645 |
0.138 |
0.228 |
2.570 |
1.000 |
2.25 |
3.63 |
3 |
1.500 |
1.8750-12 UN-2B |
SAE#24 |
SAEJ1926-24X |
SAEJ1926-24XA |
406822 |
406823 |
|
15o |
2.5895 |
0.138 |
0.228 |
3.490 |
1.250 |
2.25 |
3.75 |
3 |
2.000 |
2.5000-12 UN-2B |
SAE#32 |
SAEJ1926-32X |
SAEJ1926-32XA |
406824 |
406825 |
