Titan Flange Aligning Tool Sets
** please allow 1 week to ship **
PLEASE SELECT KIT SIZE FROM PULL DOWN MENU

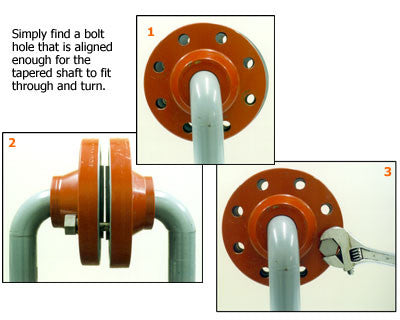

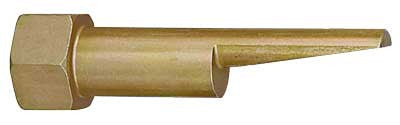

TITAN FLANGE ALIGNING TOOLS are safe, fast, and effective. The tool's tapered shaft is a patented feature that eliminates the need for hammering and prying when lining up flange bolt holes.
TITAN Flange Aligning Tools are sold individually and in sets.
Link To INDIVIDUAL: https://www.shopnewmantools.com/collections/alignment-tools/products/titan-flange-tools
Click here for Flange/Flange Aligning Tool mating chart
TITAN Flange Aligning Tool Sets |
||
|---|---|---|
| CATALOG NO. | SET INCLUDES 2 EACH: | WEIGHT |
| TIT.FTS24 | TIT.FT02, TIT.FT03, TIT.FT04 | 8 lbs. |
| TIT.FTS26 | TIT.FT02, TIT.FT03, TIT.FT04, TIT.FT06 | 11 lbs. |
| TIT.FTS28 | TIT.FT02, TIT.FT03, TIT.FT04, TIT.FT06, TIT.FT08 | 15 lbs. |

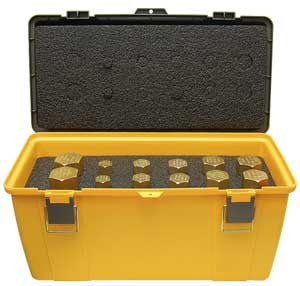

| TIT.FTS212 (shown) | TIT.FT02, TIT.FT03, TIT.FT04, TIT.FT06, TIT.FT08, TIT.FT1012 |
21 lbs. |
TITAN Flange Aligning Tool Size List
|
|||
|---|---|---|---|
| CATALOG NO. | BOLT HOLE SIZE | LENGTH | WEIGHT |
| TIT.FT02 | 3/4" | 3-1/4" | 7 ozs. |
| TIT.FT03 | 7/8" | 3-1/2" | 11 ozs. |
| TIT.FT04 | 1" | 4" | 1 lb. |
| TIT.FT06 | 1-1/8" | 5" | 1-1/2 lbs. |
| TIT.FT08 | 1-1/4" | 5-1/2" | 2 lbs. |
| TIT.FT1012 | 1-3/8" | 6-1/4" | 2-7/8 lbs. |
