Silvent X02 Stainless Nozzle

Please allow up to 1 week to ship

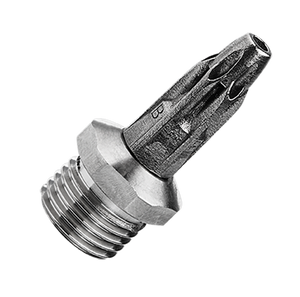

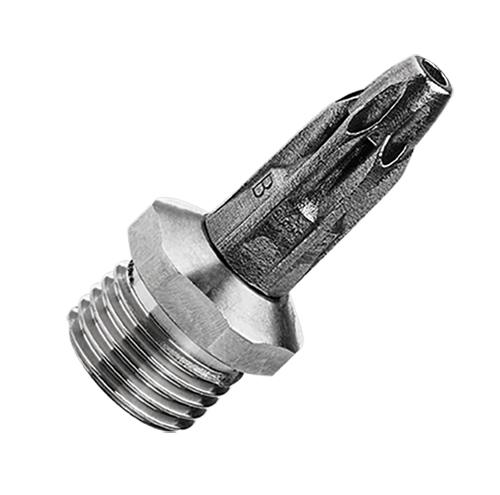

SIL.X02 is a stainless steel blowing nozzle with patented multi Laval technology. The energy saving blowing nozzle is part of Silvent’s revolutionary new X-series. The nozzle in the new X series has a completely new and innovative design that creates a concentrated jet of air with reduced turbulence, thus enabling a more targeted, effective blowing force. Thanks to the newly patented technology, the air nozzle’s design optimizes the air pressure’s change from potential energy to aimed concentrated kinetic energy. This allows for maximal use of the air pressure. SILVENT X02 has approximately twice the blowing force of SILVENT X01. The unique design makes it possible to reduce noise levels during blowing by more than 10dB(A). The blowing nozzle is perfect for environments with high cleanliness requirements, such as the food industry. SILVENT X02 is patented and fulfils the OSHA safety standards and the EU Machinery Directive’s noise level requirements. The nozzle has a 1/4” outer connection.

Specifications

	SI units SPECIAL ORDER PLEASE CALL	US units
Blowing force	6.5 N	1.4 lbs
Air consumption	34 Nm³/h	20.0 scfm
Sound level	86 dB(A)
Blowing pattern	Laval
Connection	G 1/4"	1/4"-18 NPT
Connection type	Male

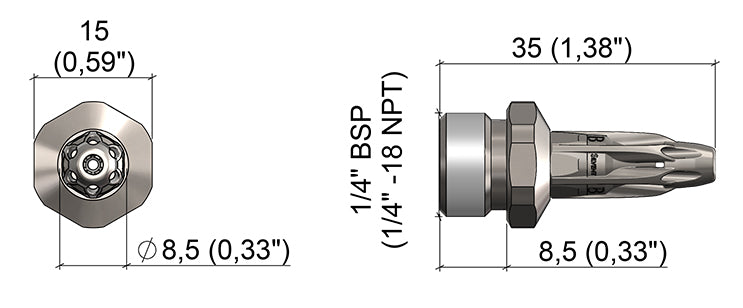

Dimensions	15x35 mm	0.59x1.38 inch
Material	Stainless steel
Weight	0.017 kg	0.037 lbs
Max temp	400 °C	752 °F
Max operating pressure	1.0 MPa	143.0 psi
Benefits
Replace open pipe	6 mm	1/4 inch
Noise reduction [dB(A)]	16 dB(A)	67 %
Air/cost savings [Nm³/h]	33 Nm³/h	49 %
