Silvent X07 Stainless Nozzle
Please allow up to 1 week to ship

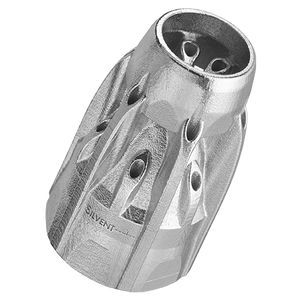

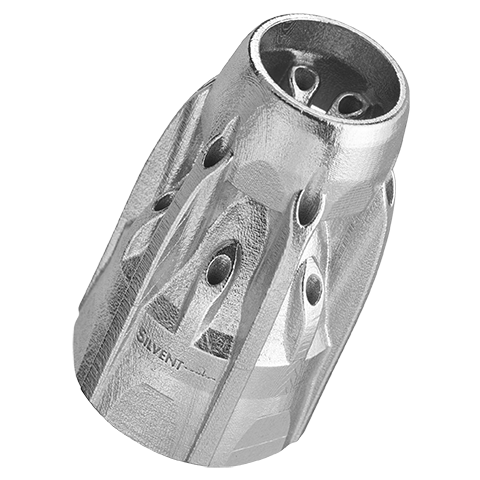

SIL.X07 is a stainless steel blowing nozzle with patented multi Laval technology, developed for applications requiring a strong blowing force. The energy saving blowing nozzle is part of Silvent’s revolutionary new X-series. The SILVENT X07 has a completely new and innovative design that creates a concentrated jet of air with reduced turbulence, thus enabling a more targeted, effective blowing force. Thanks to the newly patented technology, the air nozzle's design optimizes the air pressure’s change from potential energy to aimed concentrated kinetic energy. This allows for maximal use of the air pressure. SILVENT X07 has approximately seven times the blowing force of SILVENT X01. The unique design makes it possible to reduce noise levels during blowing by more than 10dB(A). The blowing nozzle is perfect for environments that demand strong blowing forces, such as steel plants and paper mills.
Technical data (US)
| Replace open pipe Ø (inch) | 1/2 |
| Blowing force | 5.0 lbs |
| Air consumption (scfm) | 70.6 |
| Sound level (dB(A)) | 96 |
| Nozzle technology | Multi laval |
| Material (nozzle) | 1.4404 (316L) |

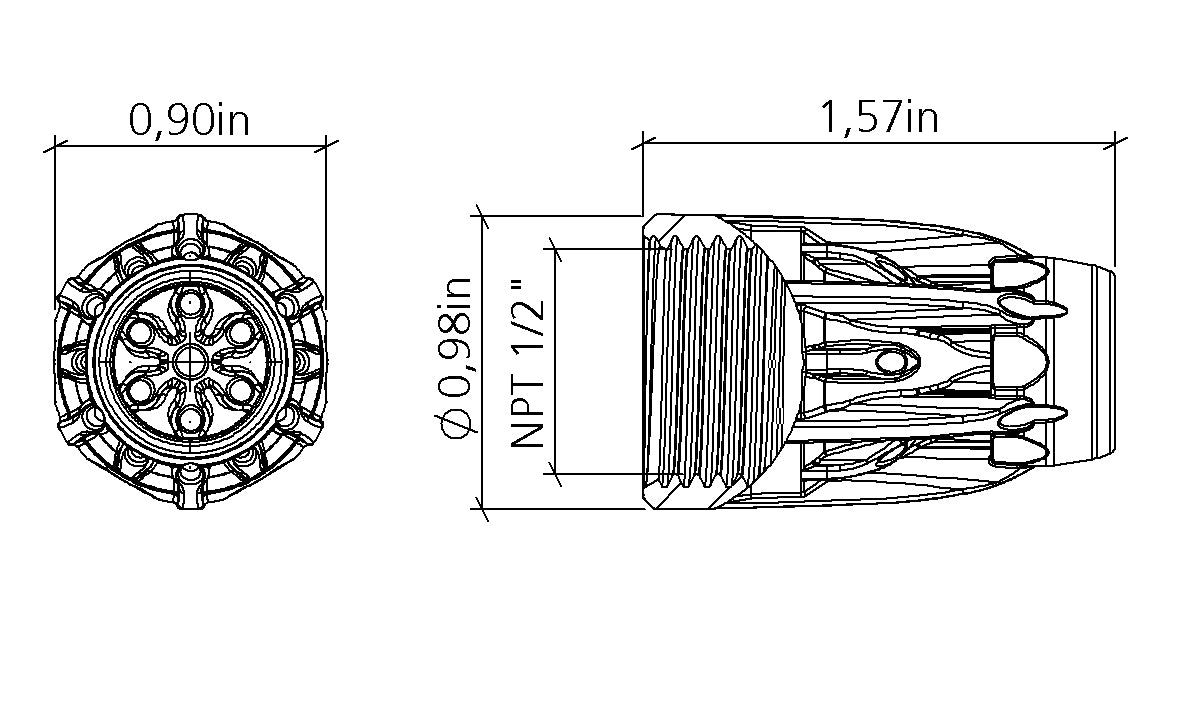

| Connection | NPT 1/2" |
| Connection type | Male |
| Weight (lbs) | 0.104 |
| Max temp. (°F) | 752 |
| Max op. pressure (psi) | 145 |
Benefits when replacing an open pipe
| Replace open pipe Ø (inch) | 1/2 | |
| Noise reduction | 20 [dB(A)] | 75% |
| Energy savings | 86 [scfm] | 55% |
Material specification: EN 1.4404
Blowing properties at different pressures
| Pressure (psi) | 40 | 60 | 80 | 100 | 120 |
|---|---|---|---|---|---|
| Blowing force (oz) | 44.9 | 67.3 | 89.7 | 112.1 | 134.6 |
| Air consumption (scfm) | 35.6 | 53.4 | 71.2 | 89.0 | 106.8 |
| Sound level (dB(A)) | 93.3 | 94.5 | 95.4 | 96.2 | 96.9 |
Blowing coverage
| Blowing dist. (inch) | Blowing coverage (inch) |
|---|---|
| 2 | 1.57 |
| 4 | 3.15 |
| 8 | 4.72 |
| 12 | 6.30 |
| 16 | 7.87 |
| 20 | 9.45 |
