UNC & UNF, Tap & Die Complete Sets

  • $1,597.05 USD


**Please allow up to 2 weeks to ship**

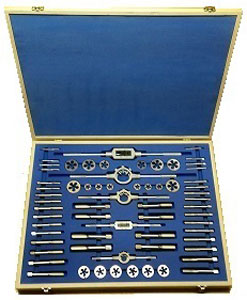

Photo is for reference, and is not for exact kit or contents

UNC - Unified National Coarse Thread

UNC - Unified National Fine Thread



Each Set contains 2 Taps per size (Taper and Bottom lead), along with the corresponding round Die, appropriate Tap Wrench(es), and Die Stock(s).

They are manufactured in the United Kingdom, and are supplied in a wooden box with custom cut foam inserts.

High Speed Steel - Ground Thread

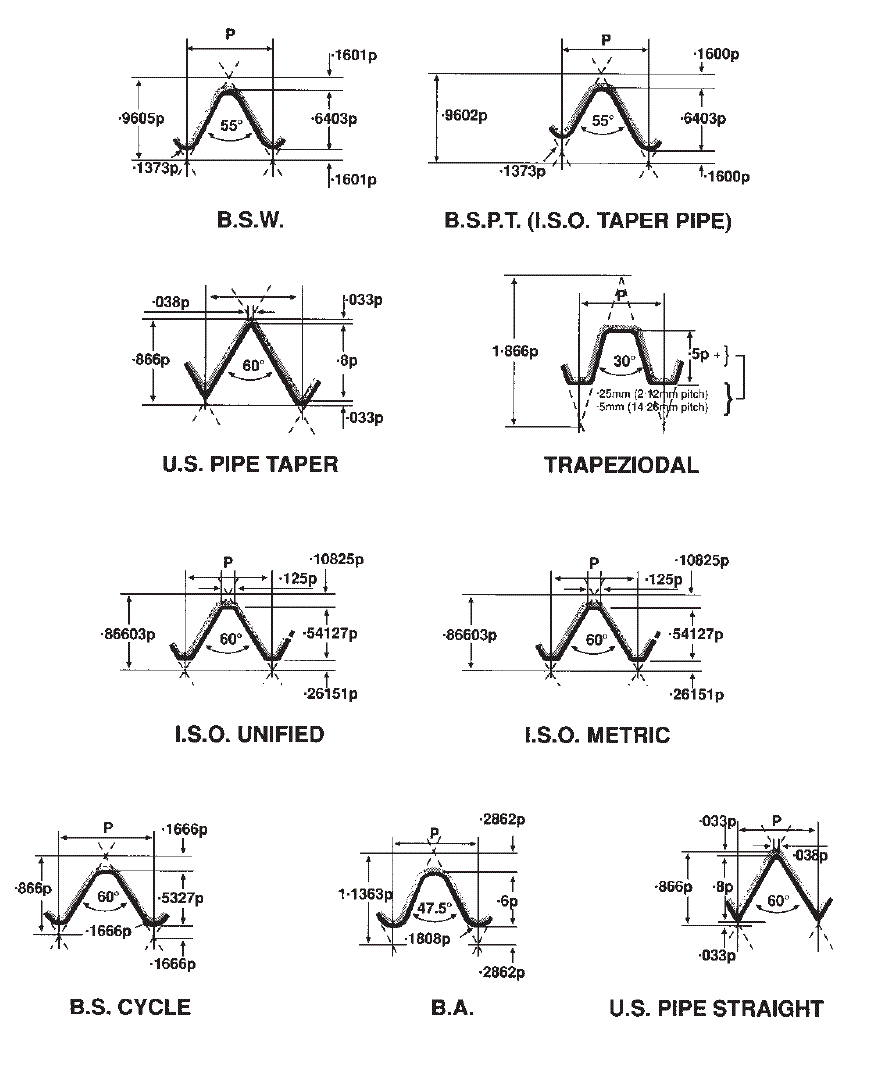

Thread Form
Size Range
Part Number Tap and Die Contents Tap
Wrenches
Die Stocks

UNC & UNF 1/4 - 1/2 TAPS-ETDS45 1/4, 5/16, 3/8, 7/16, 1/2  No 2 1"

UNC & UNF 1/4 - 3/4  TAPS-ETDS46 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 3/4  No 2, No 3 1", 1 1/2"

UNC & UNF 1/4 - 1" TAPS-ETDS49 1/4, 5/16, 38, 7/16, 1/2, 9/16, 5/8, 3/4, 7/8, 1"  No 2, No 4 1", 1 1/2, 2"





Drills are sold separately CLICK HERE

(Sizes suggested are for approx. 75% thread)

TAP DRILL SIZES - INCH SIZES - NATIONAL COARSE

----------------------------
TAP		DRILL
SIZE		SIZE
----------------------------
#1-64		#53
#2-56 		#51
#3-48 		5/64"
#4-40 		#43
#5-40 		#38
#6-32 		#36
#8-32 		#29
#10-24 		#25
#12-24 		#17
1/4-20 		#7
5/16-18 	F
3/8-16 		5/16
7/16-14		U
1/2-13 		27/64
9/16-12 	31/64
5/8-11 		17/32
3/4-10 		21/32
7/8-9 		49/64
1"-8 		7/8
1-1/8-7 	63/64
1-1/4-7 	1-7/64
1-1/2-6 	1-11/32
1-3/4-5 	1-35/64
2"-4-1/2 	1-25/32
----------------------------
