Titan Flange Aligning Pins
** please allow 1 week to ship **

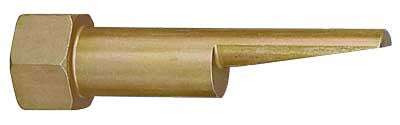

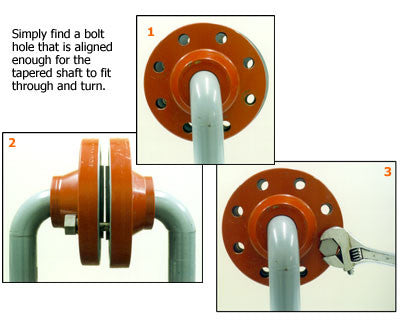

TITAN FLANGE ALIGNING TOOLS are safe, fast, and effective. The tool's tapered shaft is a patented feature that eliminates the need for hammering and prying when lining up flange bolt holes.

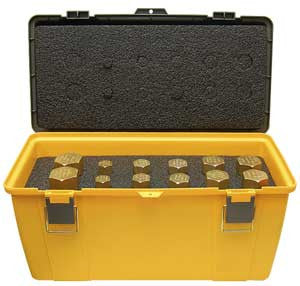

TITAN Flange Alignment Tools are sold individually and in sets.
Click here for Flange/Flange Aligning Tool mating chart
TITAN Flange Aligning Tool Size List
|
|||
|---|---|---|---|
| CATALOG NO. | BOLT HOLE SIZE | LENGTH | WEIGHT |
| TIT.FT00 | 3/8" | 2-1/8" | 1-1/4 ozs. |
| TIT.FT0 | 1/2" | 2-3/8" | 2-1/4 ozs. |
| TIT.FT01 | 5/8" | 2-3/4" | 4 ozs. |
| TIT.FT02 | 3/4" | 3-1/4" | 7 ozs. |
| TIT.FT03 | 7/8" | 3-1/2" | 11 ozs. |
| TIT.FT04 | 1" | 4" | 1 lb. |
| TIT.FT06 | 1-1/8" | 5" | 1-1/2 lbs. |
| TIT.FT08 | 1-1/4" | 5-1/2" | 2 lbs. |
| TIT.FT1012 | 1-3/8" | 6-1/4" | 2-7/8 lbs. |
| TIT.FT14 | 1-1/2" | 6-1/2" | 3-1/4 lbs. |
| TIT.FT16 | 1-5/8" | 7-1/4" | 4-1/8 lbs. |
| TIT.FT1820 | 1-3/4" | 7-7/8" | 4-3/4 lbs. |
| TIT.FT2426 | 2" | 9" | 6-5/8 lbs. |
| TIT.FT30 | 2-1/8" | 12" | 10-3/8 lbs. |
| TIT.FT34 | 2-3/8" | 13-1/4" | 13-1/8 lbs. |
| TIT.FT3642 | 2-5/8" | 14" | 16-7/8 lbs. |
| EXTRA LONG | |||
| TIT.FT0L | 1/2" | 5-3/8" | 10 ozs. |
| TIT.FT01L | 5/8" | 5-3/4" | 12 ozs. |
| TIT.FT02L | 3/4" | 6-1/4" | 14 ozs. |
| TIT.FT03L | 7/8" | 6-1/2" | 1-1/8 lbs. |
| TIT.FT04L | 1" | 7" | 1-1/2 lbs. |
| TIT.FT06L | 1-1/8" | 8" | 2-1/4 lbs. |
| TIT.FT08L | 1-1/4" | 8-1/2" | 3 lbs. |
| TIT.FT1012L | 1-3/8" | 9-1/4" | 4 lbs. |
| TIT.FT14L | 1-1/2" | 9-1/2" | 4-1/2 lbs. |
| TIT.FT16L | 1-5/8" | 10-1/4" | 5-3/4 lbs. |
| TIT.FT1820L | 1-3/4" | 10-7/8" | 6-1/4 lbs. |
| TIT.FT2426L | 2" | 12" | 7-1/2 lbs. |
| TIT.FT30L | 2-1/8" | 15" | 13 lbs. |
| TIT.FT34L | 2-3/8" | 16-1/4" | 15 lbs. |
| TIT.FT3642L | 2-5/8" | 17" | 18 lbs. |
