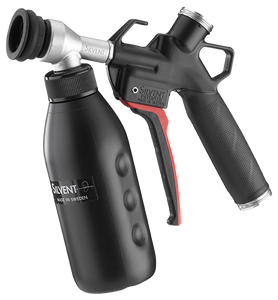

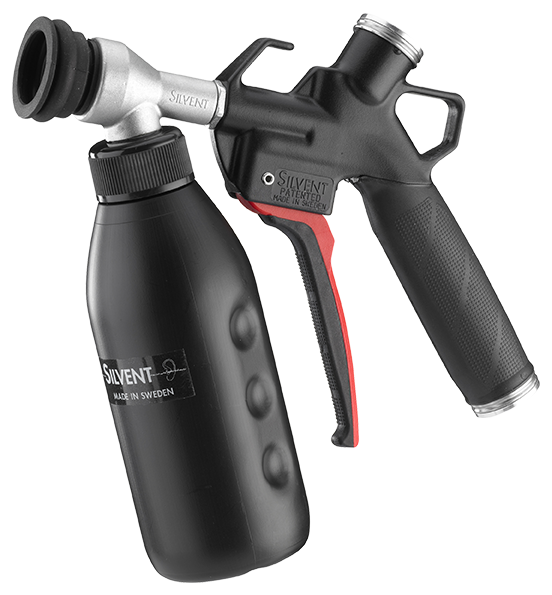

Silvent BG-007 Blind Hole Air Gun

SIL.BG-007: hole-blower that replaces conventional air guns when cleaning out blind holes.
Clean-out of blind holes generates extremely high and dangerous noise levels.
BG-007 eliminates hazardous noise and collects flying chips and debris directly in a sealed container.
This closed system ensures a cleaner, quieter, and safer working environment.
Fitted with a specially designed rubber collar that completely seals off the hole during clean-out.
The flexibility of the collar allows adjustment to the ergonomically correct working angle.
The collection vessel is easy to empty and can be rotated 360°.

**Specifications**
	SI units SPECIAL ORDER PLEASE CALL	US units
Blowing force	1.0 N	3.5 oz
Air consumption	4.4 Nm³/h	2.6 scfm
Sound level	77 dB(A)
Air pattern	Misc.
Connection	1/4" BSP	1/4"-18 NPT
Connection type	Female
Material (nozzle)	Stainless steel
Weight	0.305 kg	0.672 lbs
Max temp	70 °C	158 °F
Max operating pressure	1.0 MPa	143.0 psi

**Benefits**
Replace open pipe	4 mm	5/32 inch
Noise reduction	18 dB(A)	71 %
Air/cost savings	26 Nm³/h	91.8 scfm
Fulfill OSHA standards	Yes
Meet the EU Machine directives	Yes

**Blowing properties at different pressures**
SI units (kPa)	200	400	600	800	1000
Blowing force (N)	0.4	0.8	1.2	1.6	2.0
Air consumption (Nm³/h)	1.4	3.1	5.2	7.2	9.1
Sound level (dB(A))	66.2	74.3	78.9	82.7	85.4
US units (psi)	40	60	80	100	120
Blowing force (oz)	2.0	3.0	3.9	4.9	5.9
Air consumption (scfm)	1.1	1.9	2.8	3.7	4.5
Sound level (dB(A))	68.8	74.6	78.7	81.2	83.7
