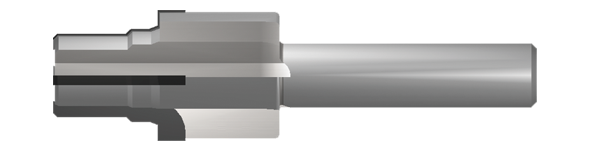

RPT - Rosan Port Cutters
Port Tools (SAE) AS1300
for Rosan Cavity PS-10035
 |
- Port Tools are ground between centers to ensure absolute concentricity.
- They are made from heat-treated alloy steel with brazed carbide inserts.
- They are designed to enlarge a pre-drilled hole and easily produce a complex form.
- Port Tools can be used for both lathe and mill applications.
- Part numbers ending in A are ALTiN coated

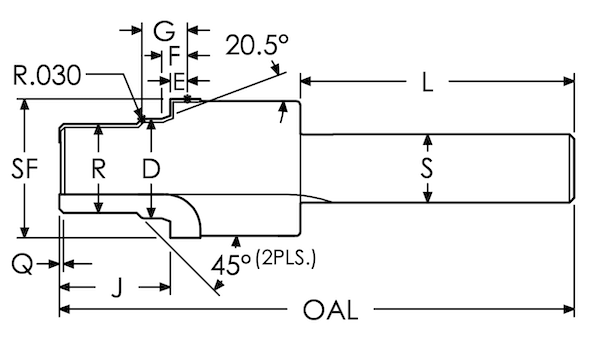

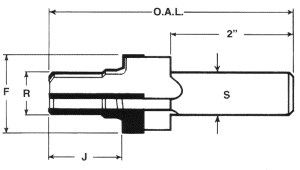

All dimensions are in inches
|
D |
E |
F |
G |
J |
R |
SF |
L |
S |
OAL |
TUBE |
THREAD |
ORDER # |
||
|
UNCOATED |
ALTiN+ |
|||||||||||||
|
0.255 |
0.093 |
0.1555 |
0.2985 |
0.610 |
0.184 |
0.382 |
2.00 |
0.500 |
3.50 |
3 |
0.125 |
0.2160-28 UNJF-3B |
Solid Carbide |
|
|
RPT-2 |
RPT-2A |
|||||||||||||
|
0.287 |
0.093 |
0.1555 |
0.2985 |
0.670 |
0.218 |
0.449 |
2.00 |
0.500 |
4.00 |
3 |
0.188 |
0.2500-28 UNJF-3B |
RPT-3 |
RPT-3A |
|
0.340 |
0.093 |
0.1555 |
0.2985 |
0.700 |
0.275 |
0.496 |
2.00 |
0.500 |
4.00 |
3 |
0.250 |
0.3125-24 UNJF-3B |
RPT-4 |
RPT-4A |
|
0.402 |
0.093 |
0.1555 |
0.2985 |
0.725 |
0.337 |
0.602 |
2.00 |
0.500 |
3.48 |
3 |
0.312 |
0.3750-24 UNJF-3B |
Carbide Tipped |
|
|
RPT-5 |
RPT-5A |
|||||||||||||
|
0.465 |
0.108 |
0.1705 |
0.3135 |
0.785 |
0.392 |
0.676 |
2.00 |
0.500 |
3.53 |
4 |
0.375 |
0.4375-20 UNJF-3B |
RPT-6 |
RPT-6A |
|
0.583 |
0.108 |
0.1705 |
0.3135 |
0.850 |
0.511 |
0.785 |
2.00 |
0.500 |
3.85 |
4 |
0.500 |
0.5625-18 UNJF-3B |
RPT-8 |
RPT-8A |
|
0.726 |
0.108 |
0.1705 |
0.3135 |
0.810 |
0.650 |
1.016 |
2.00 |
0.500 |
3.81 |
4 |
0.625 |
0.6875-24 UNJEF-3B |
RPT-10 |
RPT-10A |
|
0.900 |
0.108 |
0.1705 |
0.3455 |
0.950 |
0.767 |
1.140 |
2.00 |
0.750 |
4.20 |
4 |
0.750 |
0.8125-20 UNJEF-3B |
RPT-12 |
RPT-12A |
|
1.163 |
0.108 |
0.1705 |
0.3455 |
1.015 |
1.073 |
1.428 |
2.00 |
0.750 |
4.26 |
4 |
1.000 |
1.1250-18 UNJEF-3B |
RPT-16 |
RPT-16A |
|
1.388 |
0.135 |
0.1975 |
0.3775 |
1.020 |
1.261 |
1.751 |
2.00 |
0.750 |
4.52 |
4 |
1.250 |
1.3125-18 UNJEF-3B |
RPT-20 |
RPT-20A |
|
1.665 |
0.135 |
0.1975 |
0.3775 |
1.205 |
1.574 |
2.002 |
0.750 |
2.00 |
4.52 |
4 |
1.500 |
1.6250-18 UNJEF-3B |
RPT-24 |
RPT-24A |
